Home > Product > PU Hose > TPU Steel Wire Spiral Reinforced Hose Series

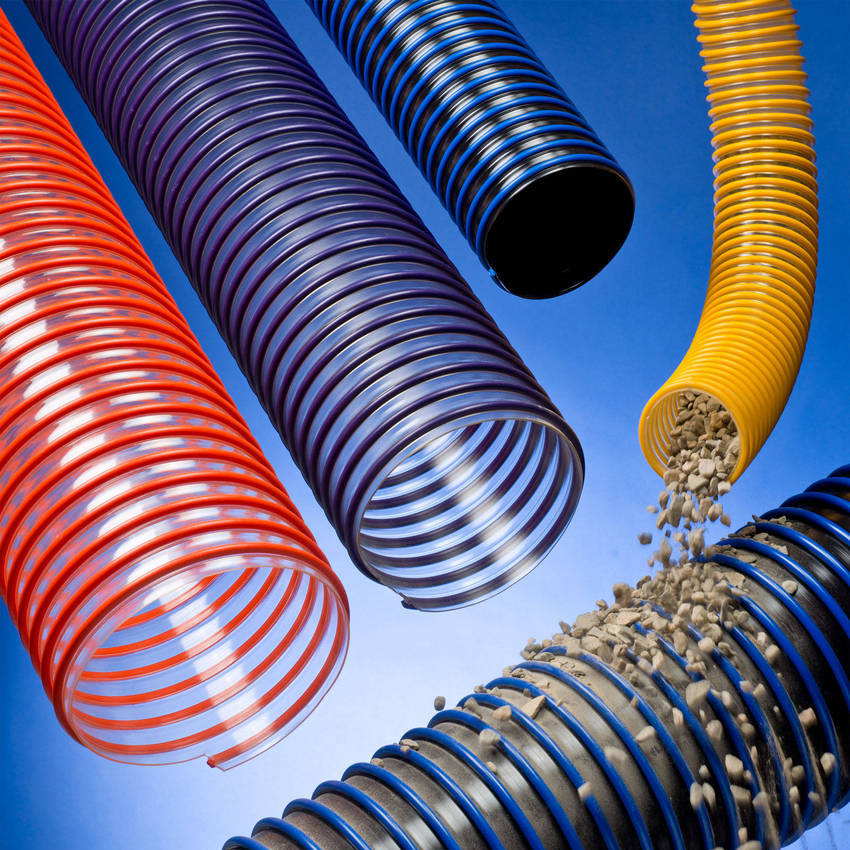

TPU Steel Wire Spiral Reinforced Hose Series
Model :
Category : PU Hose
Product Name : TPU Steel Wire Spiral Reinforced Hose Series

Product Details :
Purpose of use: This product is widely used in the fields of industry, agriculture, irrigation, fishery, civil works, foodstuff, sanitation, petroleum industry etc. It is the best hose for high-pressure pumping and conveying water, oil and powder grain.
This product is the best alternative product of PVC hose, rubber hose and metal hose. It can be applied in factory, farm irrigation, coal mine, oil depot, brewery, liquid food and sand pumping, sandblast equipment as well as assembly of vending machine, ice crusher and icebox etc.
Features: This product is a kind of TPU hose with built-in steel wire structure. It features light weight, good softness, good elasticity, corrosion resistance, hydrolysis resistance, high transparence, no toxicity or odor, small bending radius, and good load resistant capability. It can keep its original shape in the vacuum status and keep good flexibility at extremely low temperature. It has extremely high strength and long service life.
Type: TPU TPE steel wire spiral reinforced hose; TPU PEUR steel wire spiral reinforced hose; TPU PCL steel wire spiral reinforced hose; TPU low-cost steel wire spiral reinforced hose
Media: chemical liquid, food and beverage, oil, water, gas, solid particle
Temperature: -35℃-90℃
Hardness: 70A-98A
Item No. British Measurement       Metric Measurement    W.P. B.P.   Weight

Inch I.D.mm OD.mm m/roll MPa Mpa Kg/roll
PUGZ-25×3 1" 25 31 50 0.1~0.7 2.0 0.9 14.77
PUGZ-32×3 1 1/4" 32 38 40 -0.1~0.6 1.8 0.8 14.77
PUGZ-38×3.5 1 1/2" 38 45 40 -0.1~0.6 1.7 0.7 20.43
PUGZ-50×3.5 2" 50 57 40 -0.1~0.5 1.5 0.6 26.34
PUGZ-64×4 2 1/2" 64 62 20 -0.1~0.5 1.4 0.5 19.13
PUGZ-75×5 3" 75 85 20 -0.1~0.4 1.2 0.5 28.13
PUGZ-90×6 3 1/2" 90 102 20 -0.1~0.3 1 0.5 40.51
PUGZ-100×7 4" 100 114 20 -0.1~0.3 0.9 0.5 52.68
