Home > Product > Industrial Hose > Suction hose

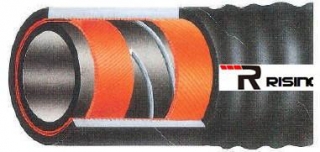

Suction hose
Model :
Category : Industrial Hose
Product Name : Suction hose

Product Details :
Compose：
Inner rubber layer, fabric cloth layer, and outer rubber layer
Application: The hose is suitable for sucking and discharging water or general neutral liquid for mine, factory, construction and water conservancy engineering.
Characteristic:
It can endure pressure and vacuum-80kPa (600Hg). Blow up pressure of this hose is not less than 3 times of working pressure.

SIZE WP(BAR) Size of soft joint (mm) Length (L)
  ID Tolerance 6 BAR 9BAR Length Tolerance (mm) m Tolerance (mm)
　 　
(mm) Layers (L)
25 ±1.2 2 3 100 ±15 8 ±120
32 ±1.2 2 3 100 ±15 8 ±120
38 ±1.2 2 3 100 ±15 8 ±120
51 ±1.2 3 4 100 ±15 8 ±120
64 ±1.5 3 4 100 ±15 8 ±120
76 ±1.5 4 5 100 ±15 8 ±120
89 ±1.5 4 7 100 ±15 8 ±120
102 ±2.0 5 8 125 ±20 8 ±120
127 ±2.0 5 8 125 ±20 8 ±120
152 ±2.0 5 7 150 ±20 8 ±120
203 ±2.5 6 8 200 ±25 8 ±120
254 ±2.5 7 10 200 ±25 8 ±120
305 ±2.5 7 10 200 ±25 8 ±120
