Home > Product > Hydraulic Hose > SAE 100R9
SAE 100R9
Model :
Category : Hydraulic Hose
Product Name : SAE 100R9

Product Details :

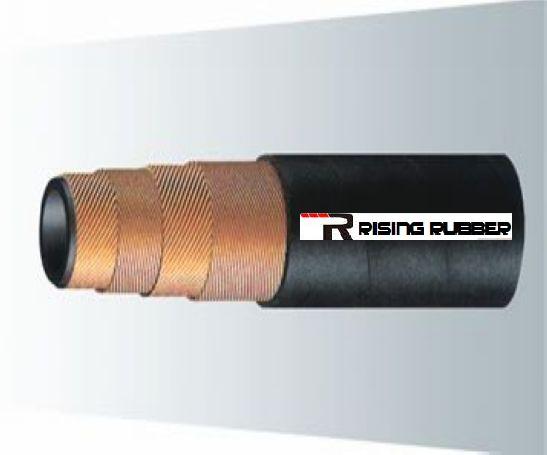

CONSTRUCTION:

This hose consists of an inner tube of oil-resistant synthetic rubber,four-spiral wire braid renforcement,and an oil- and weather-resistant synthetic rubber cover.



APPLICATIONS:

Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.



WORKING TEMPERATURE:
From -40°C up to +100°C
Size  Inside Diameter Outside Diameter Working Pressure Burst Pressure Bend Radius
(inch) (mm) Max (mm) Max (Mpa) Max (Psi) Min (Mpa) Min (Psi) (mm)
3/8" 9.5 21.1 31 4500 124 18000 127
1/2" 12.7 24.3 28 4500 110 16000 178
3/4" 19 31.9 21 3000 83 12000 241
1" 25.4 40.5 21 3000 83 12000 305
1-1/4" 31.8 50.7 17 2500 69 10000 419
1-1/2" 38.1 58.7 14 2000 55 8000 508
2" 50.8 73 14 2000 55 8000 66
