Home > Product > Hydraulic Hose > SAE 100R7
SAE 100R7
Model :
Category : Hydraulic Hose
Product Name : SAE 100R7

Product Details :

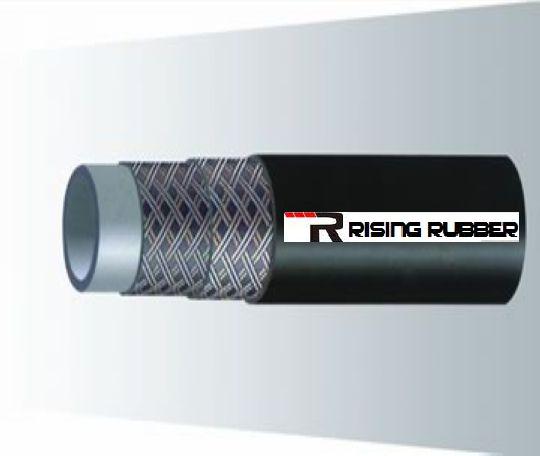

High PressureFibre Braided Rubber Resin Hose :
SAE 100 R7/EN856 R7 STANDARD
Structure and capability :
This kind of hose is made of Inner Tube (Nylon), reinforcement (High Flexibility Nylon or Thetmoplastic). It is Lightweight, Flexibility, and the inner tube is vety smooth. With a few loss of Pressure, the hose resistance of the Medium flowing is small, and it also owns a fine performance of Anti-chemical and Impulse.
Application :
Automobile, Engineering Machinery, Lathe,Agriculture Machine, Mining, Spurting the Oil Paint, Avigation&Spacefight, Cooling and other Hydraulic Control System.
DN Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm MPa psi MPa psi mm kg/m metres
3 1/8" 3.3 8.5 17.2 2500 68.9 10000 13 0.037 20-100
5 3/16" 4.8 10.8 20.7 3000 82.7 12000 20 0.068 20-100
6 1/4" 6.4 13.0 20.7 3000 82.7 12000 33 0.085 20-100
8 5/16" 7.9 15.1 17.2 2500 68.9 10000 46 0.103 20-100
10 3/8" 9.5 17.0 15.5 2250 66.1 9000 51 0.141 20-100
13 1/2" 13.8 20.7 13.8 2000 55.2 8000 76 0.210 20-100
19 3/4" 8.6 27.1 8.6 1250 34.5 5000 127 0.287 20-100
25 1" 6.9 34.0 6.9 1000 27.6 4000 203 0.542 20-100
