Home > Product > Hydraulic Hose > SAE 100R6
SAE 100R6
Model :
Category : Hydraulic Hose
Product Name : SAE 100R6

Product Details :

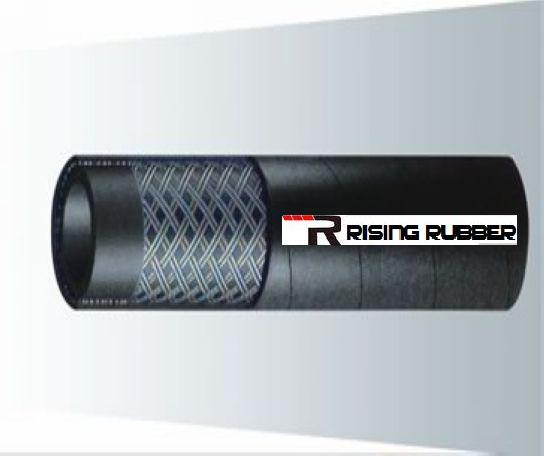

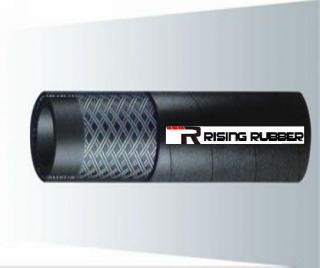

Wire Braid Hydraulic Hose :
SAE J517 TYPE 100 R6 STANDARD
Tube :
Oil resistant synthetic rubber
Reinforcement :
one high tensile steel fibre braid (1T/B)
Cover Compound :
Abrasion and weather resistant synthetic rubber
Temperature range :
-40℃.to +100℃
DN Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm MPa psi MPa psi mm kg/m metres
5 3/16" 4.8 11.1 3.4 500 13.8 2000 50 0.11 50/100
6 1/4" 6.4 12.7 2.8 400 11 1600 65 0.15 50/100
8 5/16" 7.9 14.3 2.8 400 11 1600 75 0.16 50/100
10 3/8" 9.5 15.9 2.8 400 11 1600 75 0.18 50/100
13 1/2" 12.7 19.8 2.8 400 11 1600 100 0.26 50/100
16 5/8" 15.9 23 2.4 350 9.7 1400 125 0.29 50/100
19 3/4" 19 26.6 2.1 300 8.3 1200 150 0.4 50/100
