Home > Product > Hydraulic Hose > SAE 100R5

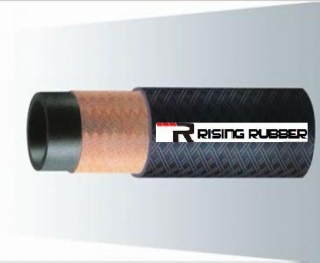

SAE 100R5
Model :
Category : Hydraulic Hose
Product Name : SAE 100R5

Product Details :
Wire Braid Hydraulic Hose :
SAE J517 TYPE 100 R5 STANDARD
Tube :
Oil resistant synthetic rubber
Reinforcement :
Fibre inber braid + one high tensile steel wire braid （1T/B X 1W/B）
Cover Compound :
one Impregnated fibre braid ( 1 T/B )
Temperature range :
-40 ℃ to +100 ℃
DN Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm MPa psi MPa psi mm kg/m metres
5 3/16" 4.8 13.2 20.7 3000 82.7 12000 76 0.24 50/ 100
6 1/4" 6.4 14.8 20.7 3000 82.7 12000 86 0.29 50/ 100
8 5/16" 7.9 17.1 15.5 2250 62.1 9000 102 0.36 50/ 100
11 13/32" 10.3 19.5 13.8 2000 55.2 8000 117 0.48 50/ 100
13 1/2" 12.7 23.4 12.1 1750 48.3 7000 140 0.55 50/ 100
16 5/8" 15.9 27.4 10.3 1500 41.4 6000 165 0.65 50/ 100
22 7/8" 22.2 31.4 5.5 800 22.1 32000 187 0.69 20/ 40
28 1 1/8" 28.6 38.1 4.3 625 17.2 25000 229 0.84 20/ 40
35 1 3/8" 35 44.4 3.4 500 13.8 2000 267 1.03 20/ 40
46 1 13/16" 46 56.4 2.4 350 9.6 14000 337 1.26 20/ 40
60 2 3/8" 60.5 73 2.4 350 9.6 14000 610 2 20/ 40
