SAE 100R4
Model :
Category : Hydraulic Hose
Product Name : SAE 100R4

Product Details :
CONSTRUCTION :

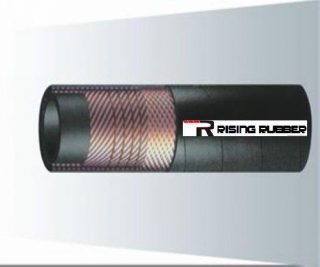

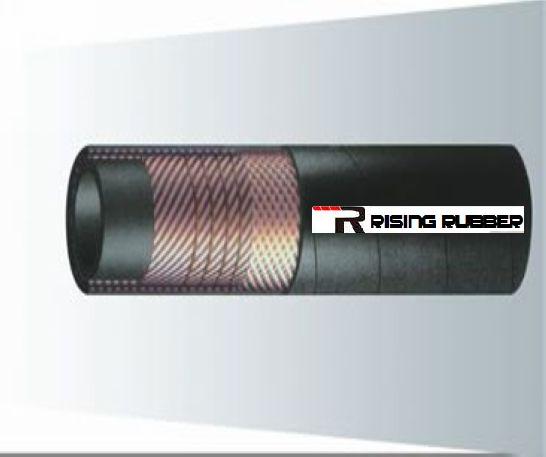

This hose consists of an inner tube of oil-resistant synthetic rubber, two wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
APPLICATIONS :
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE :
rom -40°C up to +100°C
Size (Inch) Inside Diameter Outside Diameter Proof Pressure Working Pressure Burst Pressure Bend Radius
Basic (mm) Tolerance Plus (mm) Tolerance Minus (mm) Max (mm) (Mpa) (Psi) Max (Mpa) Max (Psi) Min (Mpa) Min (Psi) (mm)
3/4" 19 0.8 0.8 34.9 4.1 600 2.1 300 8.3 1200 127
1" 25.4 0.8 0.8 41.3 3.4 500 1.7 250 6.9 1000 152
1 1/4" 31.8 1.2 1.2 50.8 2.8 400 1.4 200 5.5 800 203
1 1/2" 38.1 1.2 1.2 57.2 2.1 300 1 150 4.1 600 254
2" 50.8 1.6 1.6 69.9 1.4 200 0.7 100 2.8 400 305
2 1/2" 63.5 1.6 1.6 82.6 0.9 125 0.4 62 1.7 250 356
3" 76.2 1.6 1.6 95.3 0.8 112 0.4 56 1.5 225 457
3 1/2" 88.9 1.6 1.6 107.9 0.6 90 0.3 45 1.2 180 533
4" 101.6 1.6 1.6 120.7 0.5 70 0.2 35 1 140 610
