Home > Product > Hydraulic Hose > SAE 100R3
SAE 100R3
Model :
Category : Hydraulic Hose
Product Name : SAE 100R3

Product Details :

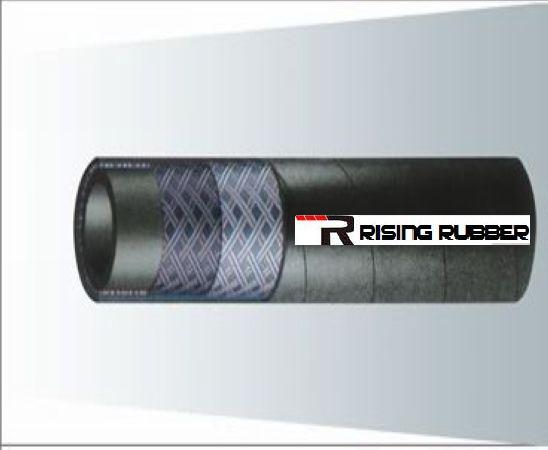

Fibre Braided Hydraulic Hose :
SAE J517 TYPE 100 R3 STANDARD

Tube :
Oil resistant synthetic rubber

Reinforcement :
two high tensile steel fibre braid (2T/B)

Cover Compound :
Abrasion and weather resistant synthetic rubber
Temperature range
:-40 ℃ to +100 ℃
DN Hose I.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm MPa psi MPa psi mm kg/m metres
5 3/16" 4.8 12.7 10.5 1520 42 6500 75 0.16 50/100
6 1/4" 6.4 14.3 8.7 1350 34.8 5300 75 0.19 50/100
8 5/16" 7.9 17.5 8.4 1300 33.6 5200 100 0.26 50/100
10 3/8" 9.5 19 7.8 1200 31.2 4840 100 0.28 50/100
13 1/2" 12.7 23.8 7 1080 28 4340 125 0.4 50/100
16 5/8" 15.9 27 6.1 945 24.4 3780 140 0.55 50/100
19 3/4" 19 31.8 5.2 800 20.8 3220 150 0.69 50/100
25 1" 25.4 38 3.9 600 15.6 2420 205 0.82 50
32 1 1/4" 31.8 44.4 2.6 40 10.4 1610 250 1 20 to 40
