Home > Product > Hydraulic Hose > SAE 100R1AT/DIN 1SN
SAE 100R1AT/DIN 1SN
Model :
Category : Hydraulic Hose
Product Name : SAE 100R1AT/DIN 1SN

Product Details :

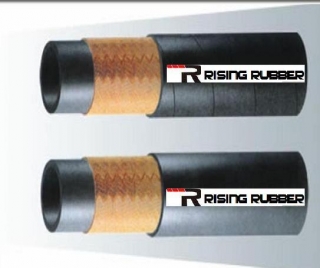

Wire Braid Hydraulic Hose:
SAE 100 R1AT/DIN EN 853 1SN STANDARD
Tube :
Oil resistant synthetic rubber
Reinforcement :
one high tensile steel wire braid
Cover :
Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃to +100 ℃

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16" 4.8 9.5 11.8 25 3630 100 14280 89 0.19 50/100
6 1/4" 6.4 11.1 13.4 22.5 3270 90 12840 102 0.21 50/100
8 5/16" 7.9 12.7 15 21.5 3120 85 12280 114 0.24 50/100
10 3/8" 9.5 15.1 17.4 18 2615 72 10280 127 0.33 50/100
13 1/2" 12.7 18.3 20.6 16 2320 64 9180 178 0.41 50/100
16 5/8" 15.9 21.4 23.7 13 1890 52 7420 203 0.45 50/100
19 3/4" 19 25.4 27.7 10.5 1530 42 6000 241 0.58 50/100
25 1" 25.4 33.3 35.6 8.8 1280 35 5020 305 0.88 50
32 1 1/4" 31.8 40.5 43.5 6.3 920 25 3600 419 1.23 20/40
38 1 1/2" 38.1 46.8 50.6 5 730 20 2860 508 1.51 20/40
51 2" 50.8 60.2 64 4 580 16 2280 635 1.97 20/40
