Home > Product > Hydraulic Hose > SAE 100R17
SAE 100R17
Model :
Category : Hydraulic Hose
Product Name : SAE 100R17

Product Details :

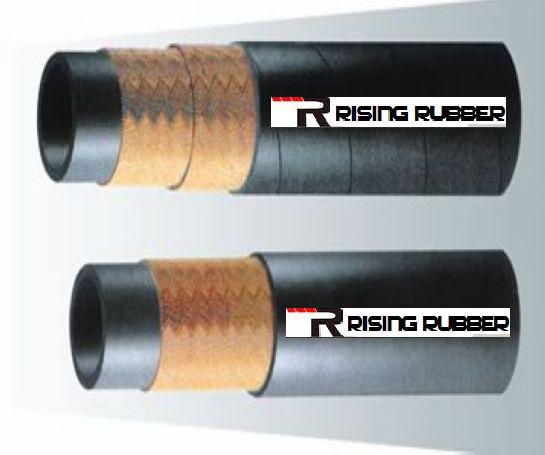

CONSTRUCTION:
SAE J517 Type 100R17,This hose consists of an inner tube of oil-resistant synthetic rubber(NBR),one or two braids of highly tensile steel wire reinforcement,and oil-and weather-resistant synthetic smooth or wrapped rubber cover(CR).
APPLICATIONS:
The rubber hydraulic hose R17 is applicable to high pressure hydraulic line,meeting or exceeding requirements of SAE100R2AT.Hose range suitable to carry hydraulic fluids,such as glycol,mineral oils,emulsion,hydrocarbons,etc.
WORKING TEMPERATURE:
From-40℃ up to +100℃
Size I.D
 min		 I.D
max		 W.D
max		 O.D
max		 COVER
 min		 COVER
max		 W.P P.P B.P Bend
radi us		 weight
inch Dash mm mm mm mm mm mm MPA PSI MPA PSI MPA PSI mm kg/m
1/4" -4 6.2 7.0 11.0 13.2 0.76 1.5 21 3045 42 6090 84 12180 55 0.17
5/16" -5 7.7 8.5 13.0 15.0 0.76 1.5 21 3045 42 6090 84 12180 55 0.21
3/8" -6 9.3 10.1 15.0 17.0 0.80 1.5 21 3045 42 6090 84 12180 65 0.25
1/2" -8 12.3 13.5 18.8 21.1 0.80 1.5 21 3045 42 6090 84 12180 90 0.47
5/8" -10 15.5 16.7 23.6 25.9 0.80 1.5 21 3045 42 6090 84 12180 100 0.59
3/4" -12 18.6 19.8 27.7 30.3 0.80 1.5 21 3045 42 6090 84 12180 120 0.75
1" -16 25.0 26.4 35.6 38.6 0.80 2.2 21 3045 42 6090 84 12180 150 1.46
