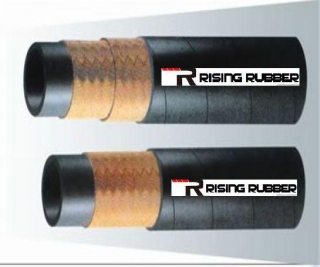

SAE 100R16
Model :
Category : Hydraulic Hose
Product Name : SAE 100R16

Product Details :
CONSTRUCTION:
SAE J517 TYPE 100R16 standard.This hose consists of an inner tube of oil-resistant synthetic rubber,one or two highly tensile steel wire braids reinforcement,and an oil-and weather-resistant synthetic rubber smooth or wrapped cover.
APPLICATIONS:
Hose range suitabel to carry hydraulic fluids,such as glycol,mineral oils,emulsion,hydrocarbons,etc.
WORKING TEMPERATURE:
From-40℃ to +100℃
Size Wire O.D. Hose O.D. Working pressure Burst pressure Bend radius weight
inch Dash 　 　 bar psi bar psi mm kg/m
1/4" -4 12.3 13.4 345 5000 1380 20000 50 0.27
5/16" -5 13.3 15 293 4250 1170 17000 55 0.35
3/8" -6 15.9 17.4 275 4000 1100 16000 65 0.42
1/2" -8 19 20.6 240 3500 960 14000 90 0.52
5/8" -10 22.6 23.8 190 2750 760 11000 100 0.63
3/4" -12 26.3 27.8 155 2250 620 9000 120 0.81
1" -16 34 35.9 138 2000 550 8000 150 1.17
1-1/4" -20 41.9 43.6 112 1625 450 6500 210 1.49
