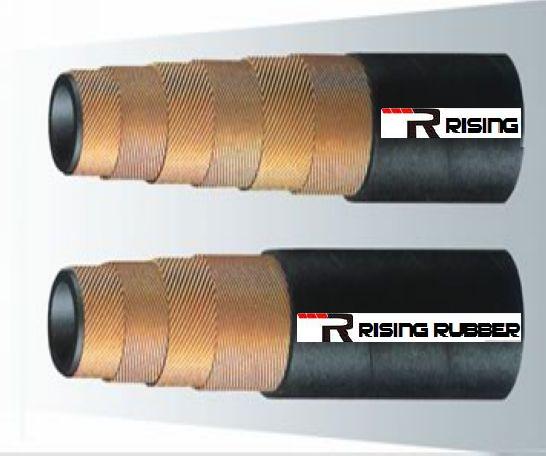

SAE 100R13
Model :
Category : Hydraulic Hose
Product Name : SAE 100R13

Product Details :
Tube:

oil resistant synthetic rubber

Reinforcement:

six high tensile steel wire spiral layers

Cover:

abrasion weather resistant synthetic rubber

Temperature range:
-40°C up to +120°C

Size  Inside Diameter Outside Diameter Proof Pressure Working Pressure Burst Pressure Bend Radius
(inch) Basic (mm) Tolerance Plus (mm) Tolerance Minus (mm) Max (mm) Min (mm) (Mpa) (Psi) Max (Mpa) Max (Psi) Min (Mpa) Min (Psi) (mm)
3/4" 19 0.8 0.4 33.2 31 69 10000 35 5000 138 20000 241
1" 25.4 1 0.4 39.8 37.6 69 10000 35 5000 138 20000 305
1-1/4" 31.8 1.2 0.4 51.3 48.3 69 10000 35 5000 138 20000 419
1-1/2" 38.1 1.2 0.4 58.8 55.8 69 10000 35 5000 138 20000 508
2" 50.8 1.2 0.4 72.7 69.5 69 10000 35 5000 138 20000 635
