SAE 100R12
Model :
Category : Hydraulic Hose
Product Name : SAE 100R12

Product Details :
CONSTRUCTION:

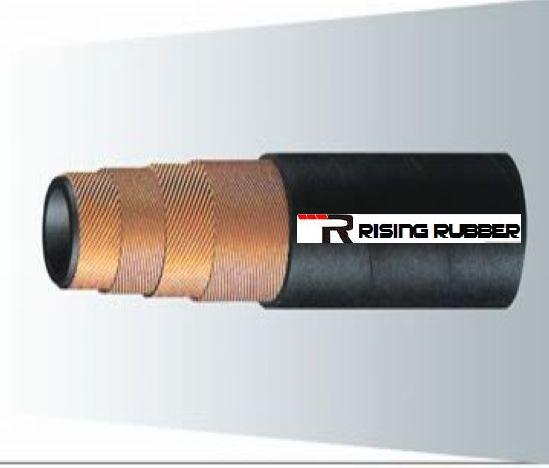

This hose consists of an inner tube of oil-resistant synthetic rubber,four-spiral wire braid renforcement,and an oil- and weather-resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40°C up to +100°C

Size (Inch) Inside Diameter   Reinforcement Outside Diameter Proof Pressure Working Pressure Burst Pressure Bend Radius
  Nom (mm) Min (mm) Max (mm) Min (mm) Max (mm) Min (mm) Max (mm) (Bar) (Psi) (Bar) (Psi) (Bar) (Psi) (mm)
3/8" 9.5 9.3 10.1 16.6 17.8 19.5 21 551 8000 276 4000 1102 16000 127
1/2" 12.7 12.3 13.5 19.9 21.5 23 24.6 551 8000 276 4000 1102 16000 178
5/8" 15.9 15.5 16.7 23.8 25.4 26.6 28.2 551 8000 276 4000 1102 16000 203
3/4" 19 18.6 19.8 26.9 28.5 29.9 31.5 551 8000 276 4000 1102 16000 241
1" 25.4 25 26.4 34.1 35.7 36.8 39.2 551 8000 276 4000 1102 16000 305
1-1/4" 31.8 31.4 33 42.7 45.1 45.4 48.6 413 6000 207 3000 827 12000 419
1-1/2" 38.1 37.7 39.3 49.2 51.6 51.9 55 345 5000 172 2500 689 10000 508
2" 50.8 50.4 52 62.5 64.8 65.1 68.3 345 5000 172 2500 689 10000 635
