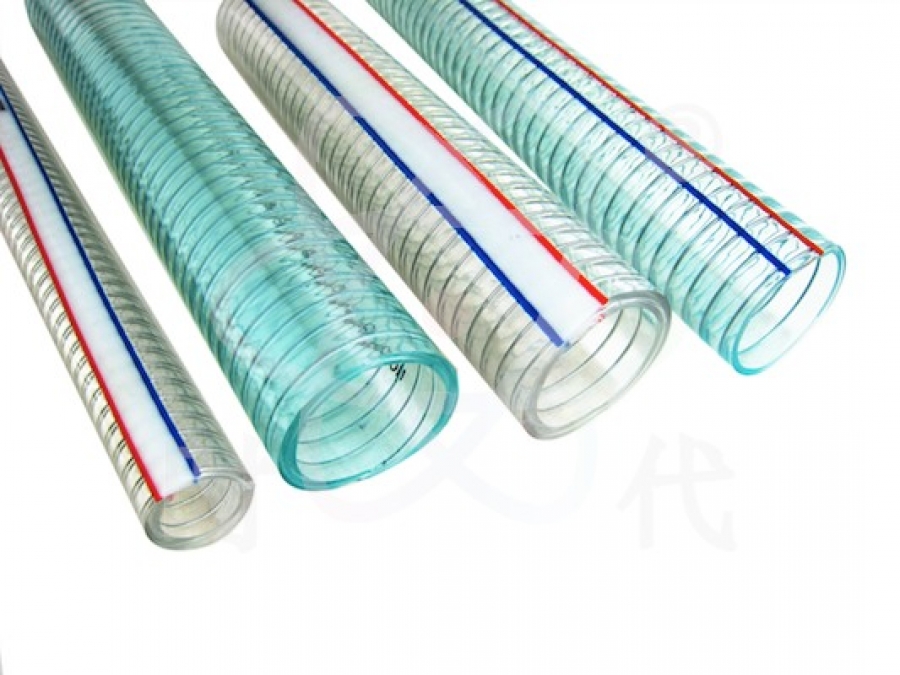

PVC Steel Wire Hose
Model :
Category : PVC Hose
Product Name : PVC Steel Wire Hose

Product Details :
Usage:The hose is widely used for drawing and conveying water, oil and powder in factories, agriculture, enginnering, foodstuffs and sanitation lines.
Properties:This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure.With colorful symbol lines on the surface of the hose, it can be more beautiful.
Working T:-5℃ ~ 65℃
Material:PVC, Steel wire
Hose Hose Metric Measurement W.P. B.P. Weight packing size Volume

British Measurement 1.D. 0.D. Length diameter height
inch mm m MPa MPa kg/roll mm mm m3
5/16" 8 14 100 0.8 2 16 500 120 0.03
3/8" 9 15 20 500 150 0.037
1/2" 12 18 0.6 1.8 23 550 170 0.051
5/8" 15 22 27 650 200 0.084
3/4" 19 26 50 0.5 1.5 17 650 150 0.063
1" 25 33 27 700 200 0.098
1 1/4" 32 41 40 0.4 1.1 30 800 170 0.109
1 1/2" 38 48 42 850 210 0.152
1 3/4" 45 55 54 960 220 0.203
2" 50 62 64 980 250 0.24
2 1/4" 57 68 30 54 970 210 0.198
2 1/2" 64 80 20 56 920 240 0.203
3" 75 92 0.3 0.8 70 1020 280 0.291
3 1/2" 90 108 84 1100 330 0.399
4 102 120 96 1100 470 0.569
5 127 145 10 0.2 0.6 80 1440 430 0.769
6 152 172 10 0.2 0.6 95 1700 430 0.913
