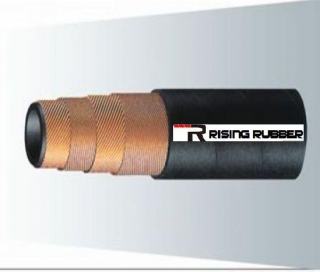

DIN 4SP
Model :
Category : Hydraulic Hose
Product Name : DIN 4SP

Product Details :

CONSTRUCTION:

This hose consists of an inner tube of oil-resistant synthetic rubber,four-spiral wire braid renforcement,and an oil- and weather-resistant synthetic rubber cover.

APPLICATIONS:

Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

WORKING TEMPERATURE:
From -40°C up to +100°C
ID Wire OD OD WP BP Bend radius Weight
inch mm mm mm bar psi bar psi mm Kg/m
3/8" 9.5 17.5 21.4 450 6500 1800 26000 180 0.78
1/2" 12.7 20.2 24.6 415 6000 1660 24000 230 0.93
5/8" 15.9 23.8 28.2 350 5000 1400 20000 250 1.17
3/4" 19 28.2 32.2 350 5000 1400 20000 300 1.48
1" 25.4 35.5 39.7 280 4000 1120 16000 340 2.02
1 1/4" 31.8 46 50.8 210 3000 840 12000 460 3.05
1 1/2" 38.1 52.4 57.2 185 2700 740 10800 560 3.52
2" 50.8 65.3 69.8 165 2400 660 9600 660 5.2
