Home > Product > Hydraulic Hose > DIN 4SH
DIN 4SH
Model :
Category : Hydraulic Hose
Product Name : DIN 4SH

Product Details :

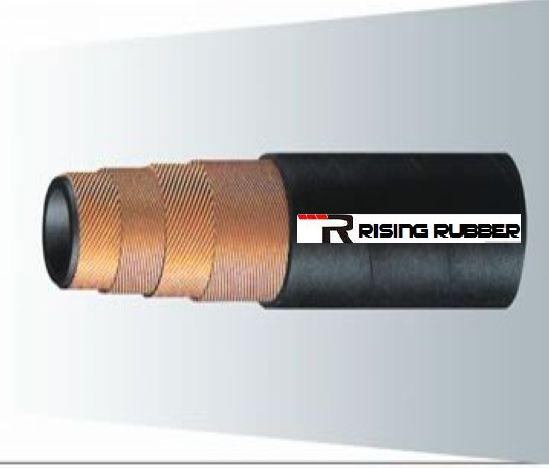

CONSTRUCTION:

This hose consists of an inner tube of oil-resistant synthetic rubber,four-spiral wire braid renforcement,and an oil- and weather-resistant synthetic rubber cover.

APPLICATIONS:

Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

WORKING TEMPERATURE:
From -40°C up to +100°C

ID Wire OD OD WP BP Bend radius Weight
inch mm mm mm bar psi bar psi mm Kg/m
3/4" 19 28.4 32.2 420 6000 1680 24000 280 1.53
1" 25.4 35.2 38.7 380 5500 1520 22000 340 2.06
1 1/4" 31.8 41.9 45.5 325 4700 1380 18800 460 2.46
1 1/2" 38.1 48.8 53.5 290 4200 1160 16800 560 3.35
2" 50.8 63.2 68.1 250 3600 1000 14400 700 4.55
