Home > Product > Hydraulic Hose > DIN 2SC
DIN 2SC
Model :
Category : Hydraulic Hose
Product Name : DIN 2SC

Product Details :

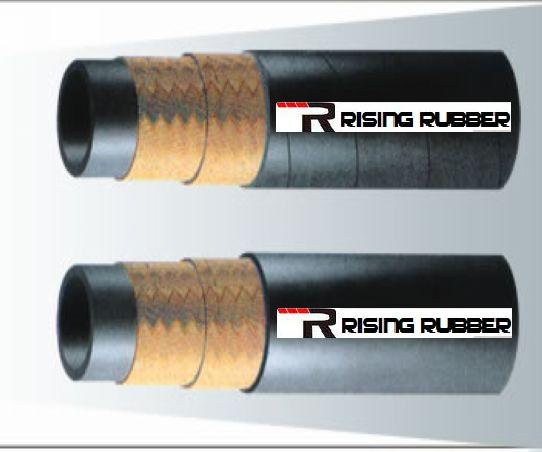

CONSTRUCTION:
Inner tube out of synthetic rubber, oil resistant.
Reinforcemant:
2 Braid of high tensile steel wire.
Cover:
Black synthetic rubber, thick. Resistant to abrasion, oil, ozone, weathering.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40°C up to +100°C
Max. temperature: +125°C (may reduce the life of the hose)
Size (Inch) Inside Diameter Outside Diameter Working Pressure Proof Pressure Burst Pressure Bend Radius
(mm) (mm) (inch) (Bar) (Psi) (Bar) (Psi) (Bar) (Psi) (mm) (inch)
1/4" 6.6 14.2 0.56 400 5800 800 11601 1600 23202 75 3
5/16" 8.1 16 0.63 350 5075 700 10151 1400 20302 85 3.4
3/8" 9.7 18.3 0.72 330 4785 660 9571 1320 19142 90 3.5
1/2" 12.9 21.5 0.85 275 3987.5 550 7976 1100 15951 130 5.1
5/8" 16.1 24.7 0.97 250 3625 500 7251 1000 14501 170 6.7
3/4" 19.2 28.6 1.13 215 3117.5 430 6236 860 12471 200 7.9
1" 25.7 36.6 1.44 165 2392.5 330 4785 660 9571 250 9.8
