Home > Product > Hydraulic Hose > DIN 1SC
DIN 1SC
Model :
Category : Hydraulic Hose
Product Name : DIN 1SC

Product Details :

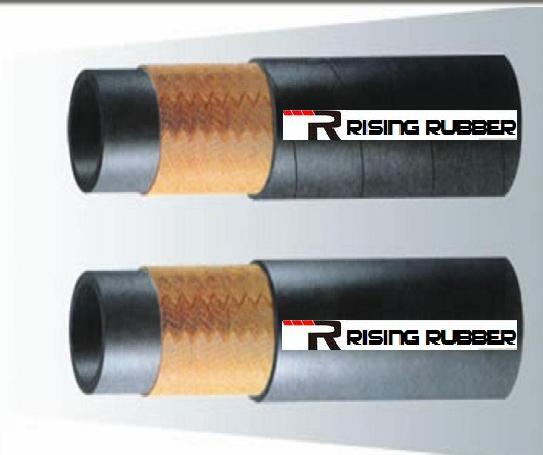

CONSTRUCTION:
Inner tube out of synthetic rubber, oil resistant.
Reinforcemant: 1 Braid of high tensile steel wire.
Cover: Black synthetic rubber, thick. Resistant to abrasion, oil, ozone, weathering.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40°C up to +100°C  Max. temperature: +125°C (may reduce the life of the hose)
Size (Inch) Inside Diameter Outside Diameter Working Pressure Proof Pressure Burst Pressure Bend Radius
(mm) (mm) (inch) (Bar) (Psi) (Bar) (Psi) (Bar) (Psi) (mm) (inch)
1/4" 6.6 13.5 0.53 225 3263 450 6526 900 13051 75 3
5/16" 8.1 14.5 0.57 215 3118 430 6236 850 12471 85 3.4
3/8" 9.7 16.9 0.67 180 2610 360 5220 720 10441 90 3.5
1/2" 12.9 20.4 0.8 160 2320 320 4640 640 9281 130 5.1
5/8" 16.1 23 0.91 130 1885 260 3770 520 7541 150 5.9
3/4" 19.2 26.7 1.05 105 1523 210 3045 420 6090 180 7.1
1" 25.7 34.9 1.37 88 1276 176 2552 350 5104 230 9.1
